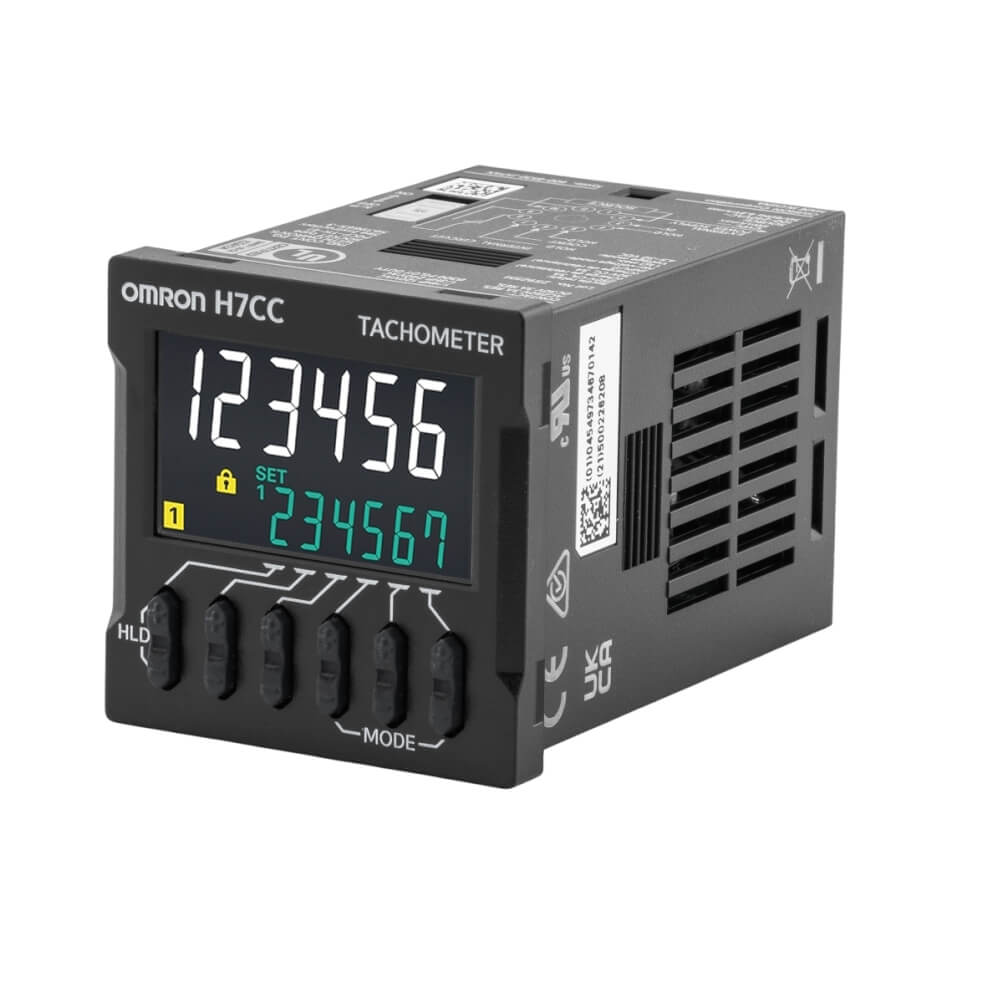

H7CC-R11

Digital counter, plug-in, 11-pin, 48x48 mm, IP66, 6 count digits, tachometer, SPDT 3 A relay output, 100-240 VAC supply, 12 VDC aux. supply

Specifications

Type Pre-set counter
Size 1/16 DIN (48 x 48 mm)
Counting functions Tachometer
Counting range 0 - 999999
LCD backlight With backlight
Number of digits 6
Body color Black
Installation type Socket
Terminal Plug-in
Output type Relay
Relay output 1
Transistor output 0
Inputs DC voltage, No-voltage
Supply voltage AC 100-240 V
Speed 10000 Hz
Product Width (unpacked) 48 mm
Product Height (unpacked) 48 mm
Product Depth (unpacked) 63.7 mm

Tilbehør

P2CF-11-E Socket, DIN rail/surface mounting, 11-pin, screw terminals
P3GA-11 Socket, back-connecting, 11-pin, screw terminals
Y92A-48 Protective cover for DIN48x48mm device, hard plastic (shallow)
Y92A-48F1 Protective cover for DIN 48 x 48 mm timer and counter, soft plastic
Y92F-30 Flush panel mounting adapter for DIN 48x48 mm device
Y92F-45 Panel adaptor, 48 x 48 device into 67 x 67 hole
