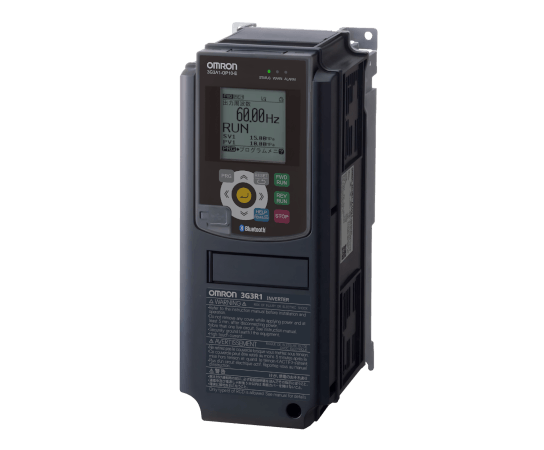

R1
New High-Performance General-Purpose Inverter
This new family member completes the Omron inverter portfolio offering better control performance, improving application range usability and enhancing maintenance functions
- High-performance motor control for IM and PM motors in OLV & CLV, delivering 200% or more torque at 0.0 Hz and supporting applications requiring high-speed rotation with minimal speed and torque fluctuations.
- Advanced control performance with 40 Hz sensorless, 200 Hz vector closed-loop control, 1500 Hz current response, and a maximum output frequency of 599 Hz.
- Flexible drive ratings with quadruple rating options: HHD 150%/1 min, 200%/3 sec; HND 120%/1 min; HD 150%/1 min; ND 120%/1 min.
- Integrated hardware including a built-in EMC filter (entire range), built-in braking transistor up to 75 kW, and built-in braking resistor up to 7.5 kW.
- Comprehensive application functions, including positioning control, orientation functionality, master-follower operation, auto energy-saving operation, and regenerative solutions as an option.
- Easy engineering and commissioning with the Multifunctional Programming Plug-In software and Sysmac Studio IDE for PC configuration.
- Built-in functional safety with STO (SIL3 / Cat.3 / PL:e) and support for four encoder option boards (100 kHz open collector and line driver interfaces).
- Extensive connectivity with built-in Modbus RTU (including Modbus Mapping Function) and communication options for EtherCAT, PROFIBUS, PROFINET, and Modbus TCP (coming soon).
- Reliable and durable design with a 10-year design life for main components and compliance with CE, UL, cUL, RoHS2, plus 3C2 PCB coating.
- Wide power range from 0.4 kW to 630 kW (400 V), covering a broad variety of industrial applications.
Specifications & ordering info
| Produkt | Drive control method | Drive supply voltage | Degree of protection (IP) | Max. motor output at constant torque | Max. motor output at variable torque | Description | |
|---|---|---|---|---|---|---|---|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP20 | 0.4 kW | 0.4 kW | R1 AC Drive, 0.4 kW, 1.5 A (HHD), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP20 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP20 | 0.75 kW | 0.75 kW | R1 AC Drive, 0.7 kW, 2.5 A (HHD), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP20 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP20 | 1.5 kW | 1.5 kW | R1 AC Drive, 1.5 kW, 4.2 A (HHD), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP20 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP20 | 2.2 kW | 2.2 kW | R1 AC Drive, 2.2 kW, 6 A (HHD), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP20 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP20 | 3.7 kW | 3.7 kW | R1 AC Drive, 3.7 kW, 9 A (HHD), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP20 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP20 | 5.5 kW | 7.5 kW | R1 AC Drive, 5.5/7.5 kW, 13.5/17.5 A (HHD/HND), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP20 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP20 | 7.5 kW | 11 kW | R1 AC Drive, 7.5/11 kW, 18.5/23 A (HHD/HND), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP20 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP20 | 11 kW | 15 kW | R1 AC Drive, 11/15 kW, 24.5/35 A (HHD/HND), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP20 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP20 | 15 kW | 18.5 kW | R1 AC Drive, 15/18.5 kW, 32/41 A (HHD/HND), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP20 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP20 | 18.5 kW | 22 kW | R1 AC Drive, 18.5/22 kW, 39/45 A (HHD/HND), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP20 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP20 | 22 kW | 30 kW | R1 AC Drive, 22/30 kW, 45/60 A (HHD/HND), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP20 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP00 | 110 kW | 160 kW | R1 AC Drive, 110/160/132/160 kW, 216/290/261/290 A (HHD/HND/HD/ND), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP00 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP00 | 132 kW | 200 kW | R1 AC Drive, 132/200/160/200 kW, 260/361/325/376 A (HHD/HND/HD/ND), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP00 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP00 | 160 kW | 220 kW | R1 AC Drive, 160/220/200/220 kW, 325/415/377/431 A (HHD/HND/HD/ND), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP00 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP00 | 200 kW | 280 kW | R1 AC Drive, 200/280/220/280 kW, 377/547/432/547 A (HHD/HND/HD/ND), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP00 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP00 | 220 kW | 315 kW | R1 AC Drive, 220/315/250/315 kW, 432/610/477/610 A (HHD/HND/HD/ND), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP00 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP00 | 280 kW | 400 kW | R1 AC Drive, 280/355/315/400 kW, 520/650/585/739 A (HHD/HND/HD/ND), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP00 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP00 | 30 kW | 45 kW | R1 AC Drive, 30/37/37/45 kW, 60/75/75/85 A (HHD/HND/HD/ND), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP00 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP00 | 315 kW | 450 kW | R1 AC Drive, 315/400/355/450 kW, 585/740/650/840 A (HHD/HND/HD/ND), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP00 |
|
|
|
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector | 400 V three phase | IP00 | 355 kW | 560 kW | R1 AC Drive, 355/500/400/560 kW, 650/960/740/1039 A (HHD/HND/HD/ND), 400 VAC, 3~ input, OLV/CLV control, built-in filter, max. output freq. 590 Hz, IP00 |
|
No results found. Please expand your filter selection.
Reset all filters
Need assistance?
We’re here to help! Reach out, and our specialists will assist you in finding the best solution for your business.
+ 45 43 44 00 11
Contact us
Kontakt mig R1
Tak for indsendelsen af din forespørgsel. Vi vil vende tilbage med svar så hurtigt som muligt.
Vi har desværre tekniske problemer. Din formular er ikke modtaget. Vi undskylder og beder dig om at prøve igen senere. Detaljer: [details]
+ 45 43 44 00 11
+ 45 43 44 00 11
Request quotation
Request quotation
Tilbud på R1
Med denne formular kan du bestille et tilbud på et eller flere af vores produkter. Venligst udfyld alle de felter der er markeret med *. Dine personlige oplysninger vil blive håndteret fortroligt.
Tak for din forespørgsel. Vi vender tilbage med de ønskede oplysninger så hurtigt som muligt.
Vi har desværre tekniske problemer. Din formular er ikke modtaget. Vi undskylder og beder dig om at prøve igen senere. Detaljer: [details]
Request quotation
Request quotation
Features

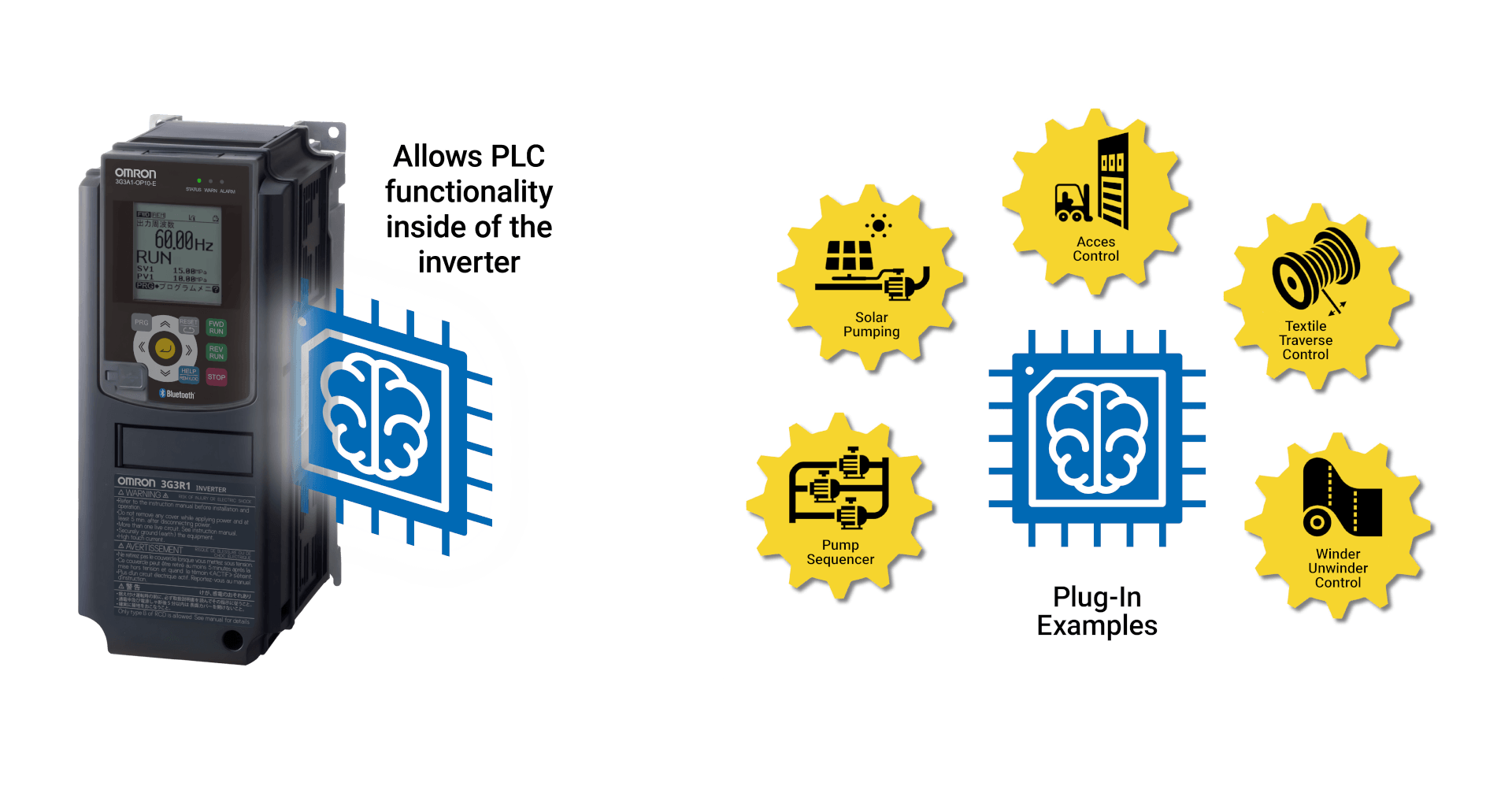

Programming Plug-In software
The R1 Inverter can perform simple sequence control programmed (plug-in software). Crane control, tension control and other large-scale processes that require fast control speeds can be configured without a PLC, optimizing costs.

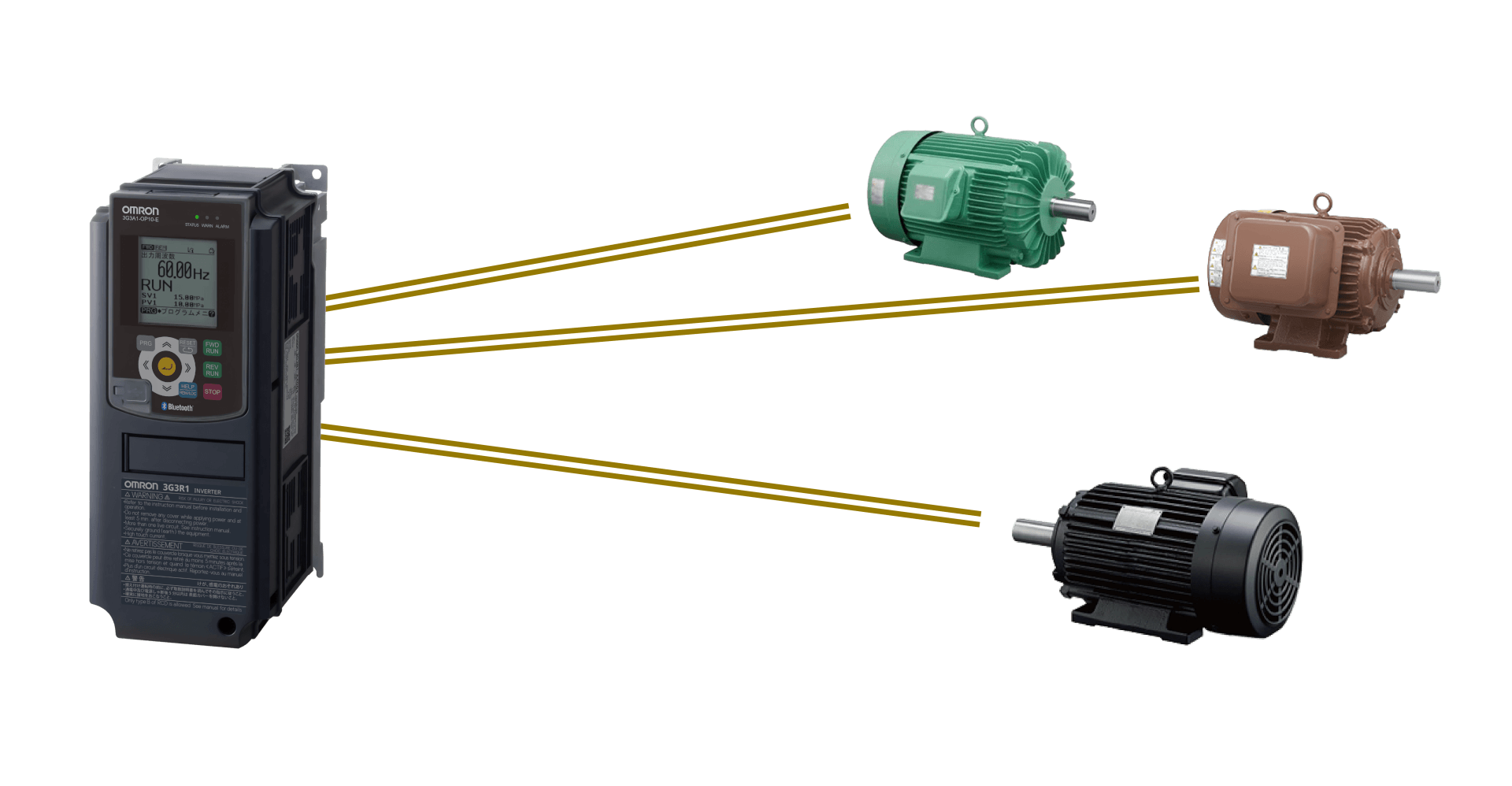

Driving multiple motor types
The R1 Series expands the choices of motors that can be used for the drive system. Standard induction motors, permanent magnet motors, direct drive PM motors (up to 128 poles), and special motors such as drum motors are supported. Comes with new auto-tuning features that enable multi-drive operation using induction and synchronous motors and helps saving energy.
Built-in EMC filter
Built-in noise filters corresponding to the European EMC Directive IEC61800 -3 2nd Environment Category C3 and UL Power Conversion Equipment/UL61800 -5 -1 will save external hardware and extra cost.
Built-in Braking Unit and Braking Resistor
Built-in Braking Transistor
Built-in braking transistor up to 75kW.

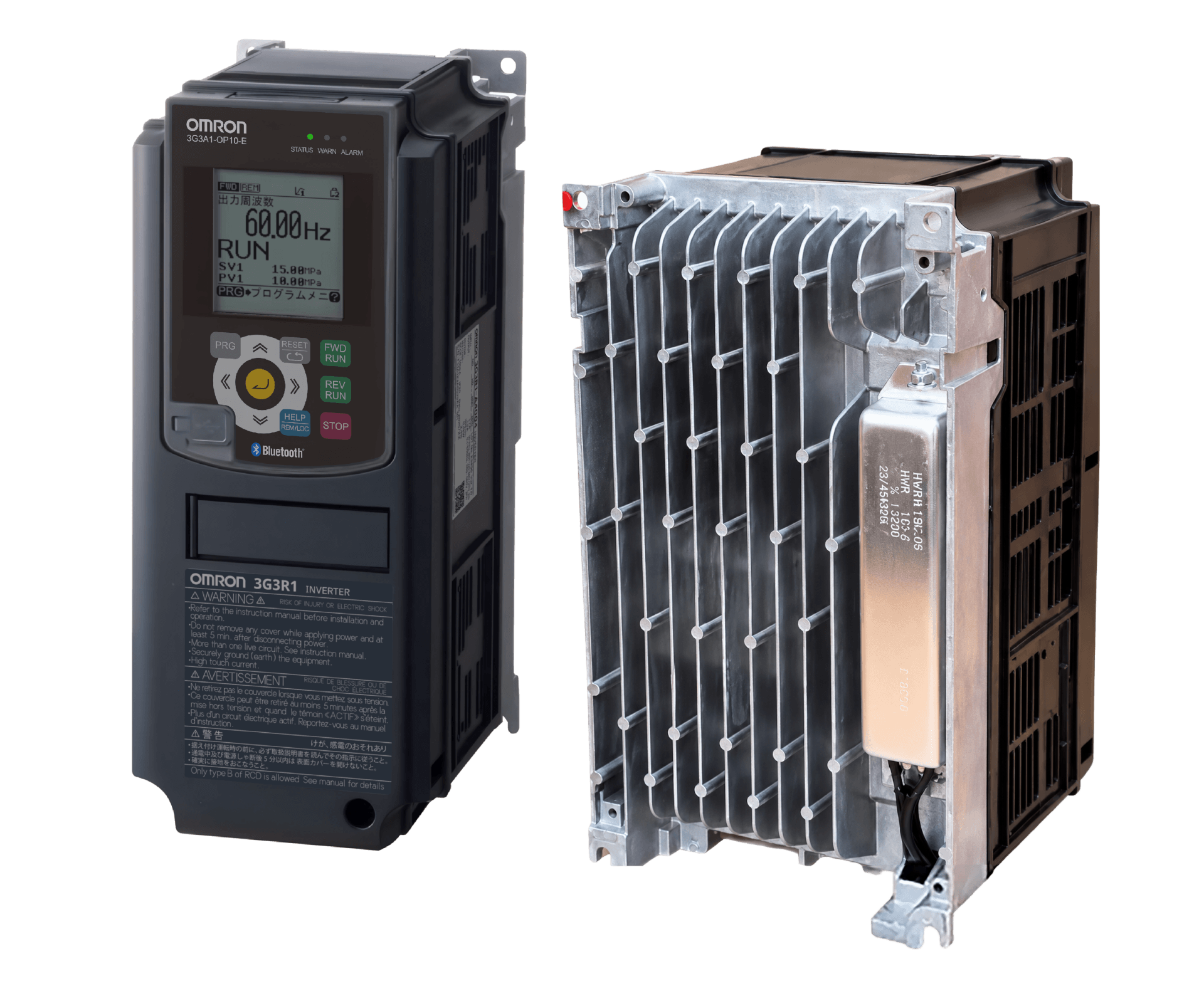

Built-in Braking Resistor
Built-in braking Resistor included in the heatsink up to 7.5kW.

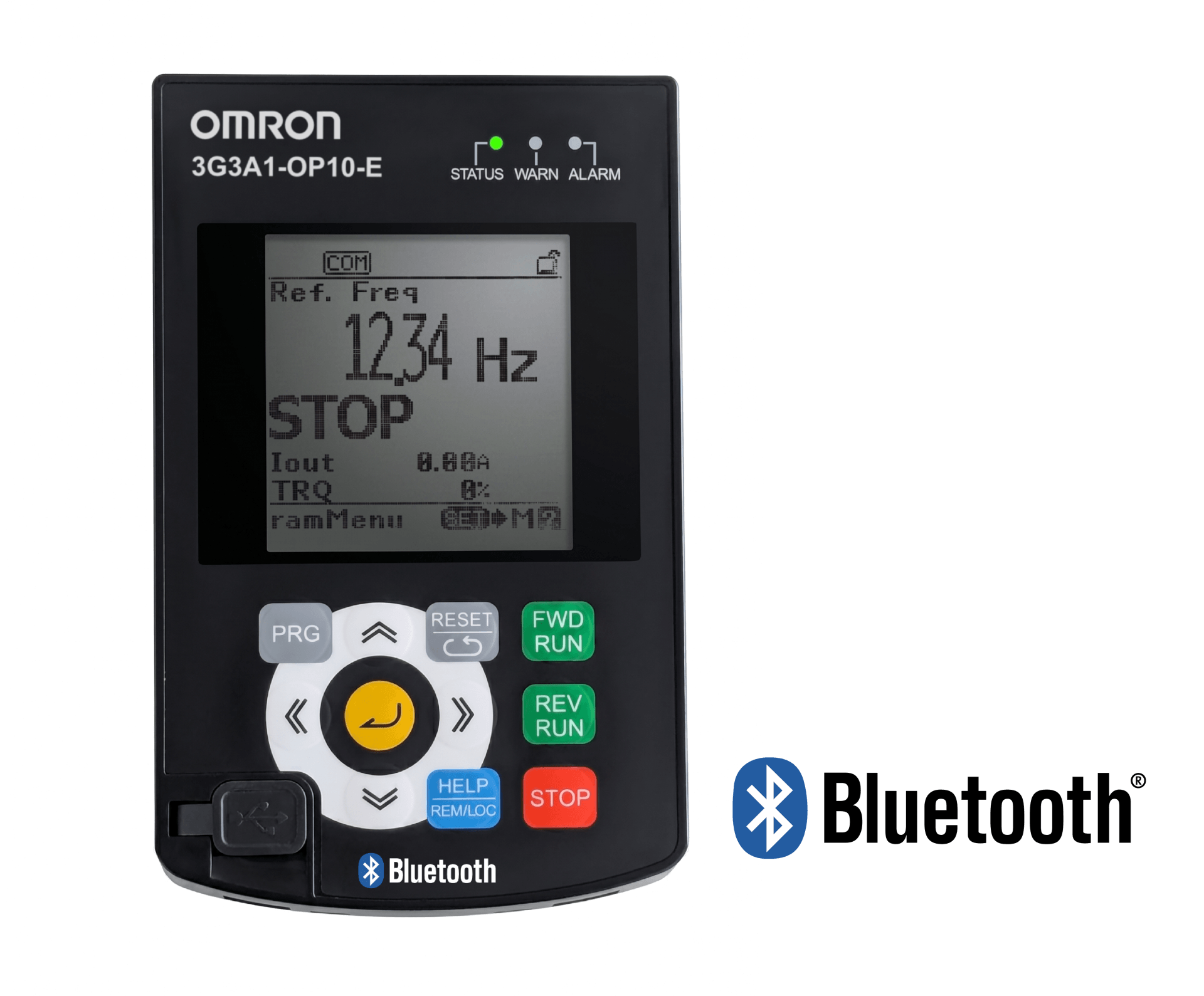

New multi-function keypad
- Large graphical LCD panel.
- USB Connection.
- 10 languages available.
- SD card : Traceback data.
- RTC with battery
- Waterproof surface.
- Copy/Paste Functionality.
- Bluetooth connection.
Efficiency of assembly and configuration
Enhanced usability
One software for programming, configuration, simulation and monitoring. User friendly and helpful GUI for drive configuration by Sysmac Studio Drive Edition.
- Integrated configuration
- Setup & Tuning
- Wizards
- Data Trace Monitor
- Test Run
- Auto Tuning
Introducing OMRON’s New Free Software for Drive Configuration
Experience seamless drive configuration with the OMRON Drives App—your all-in-one tool for smartphones, tablets, and PCs. Whether you're on the factory floor or working remotely, this free app puts control and convenience in your hands.
Key Features:
- Free Tool for Smartphone, Tablet, and PC
Enjoy full functionality across all your devices—no subscription required. - Available on Microsoft Store and Google Play Store
Download instantly and get started in seconds. - Copy and Paste Functionality
Save time with intuitive copy-paste support for drive parameters and settings. - M1-EP Protocol Configuration
Easily configure M1-EP protocol for streamlined communication and integration. - M1 & R1 Support
Upload/download & parameter edition support
IP55 option
IP55 protection for the inverter’s main cooling unit contributes to enhanced cooling outside the panel, lower costs, and downsizing.For models from 30kW up to 630kW.
Predictive Maintenance
- Warning of expected IGBT life.
- Warning reduced cooling airflow.
- Alarm data + RTC information.
- Traceback information.
High Performance Control, Usability & Durability

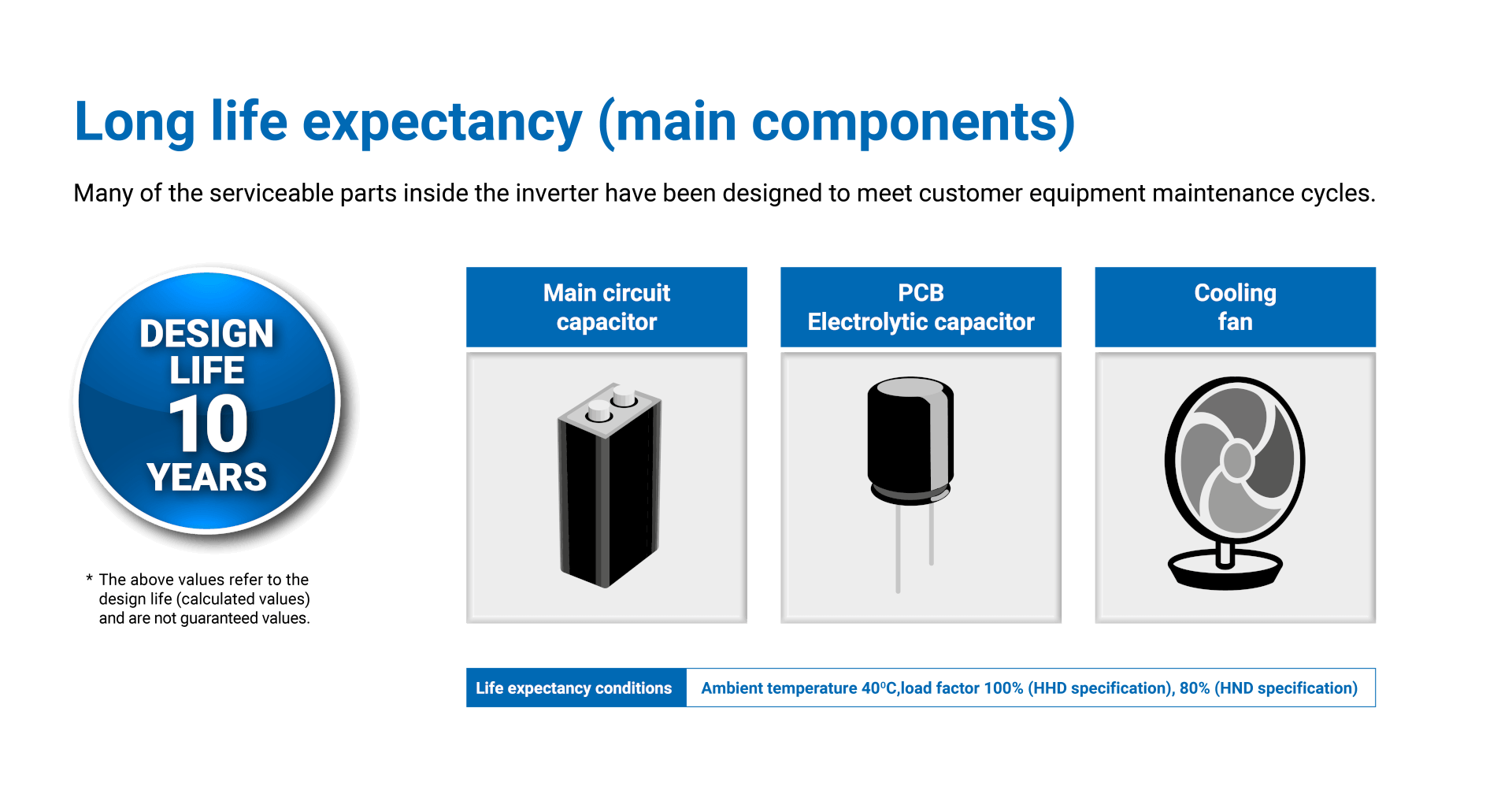

- Serviceable parts inside the inverter have been designed for 10 years life (including cooling fan).
- Improved control and power resistance to harsh environments (Supports IEC60721-3-3/JIS C60721-3-3 Class 3C2 as standard).

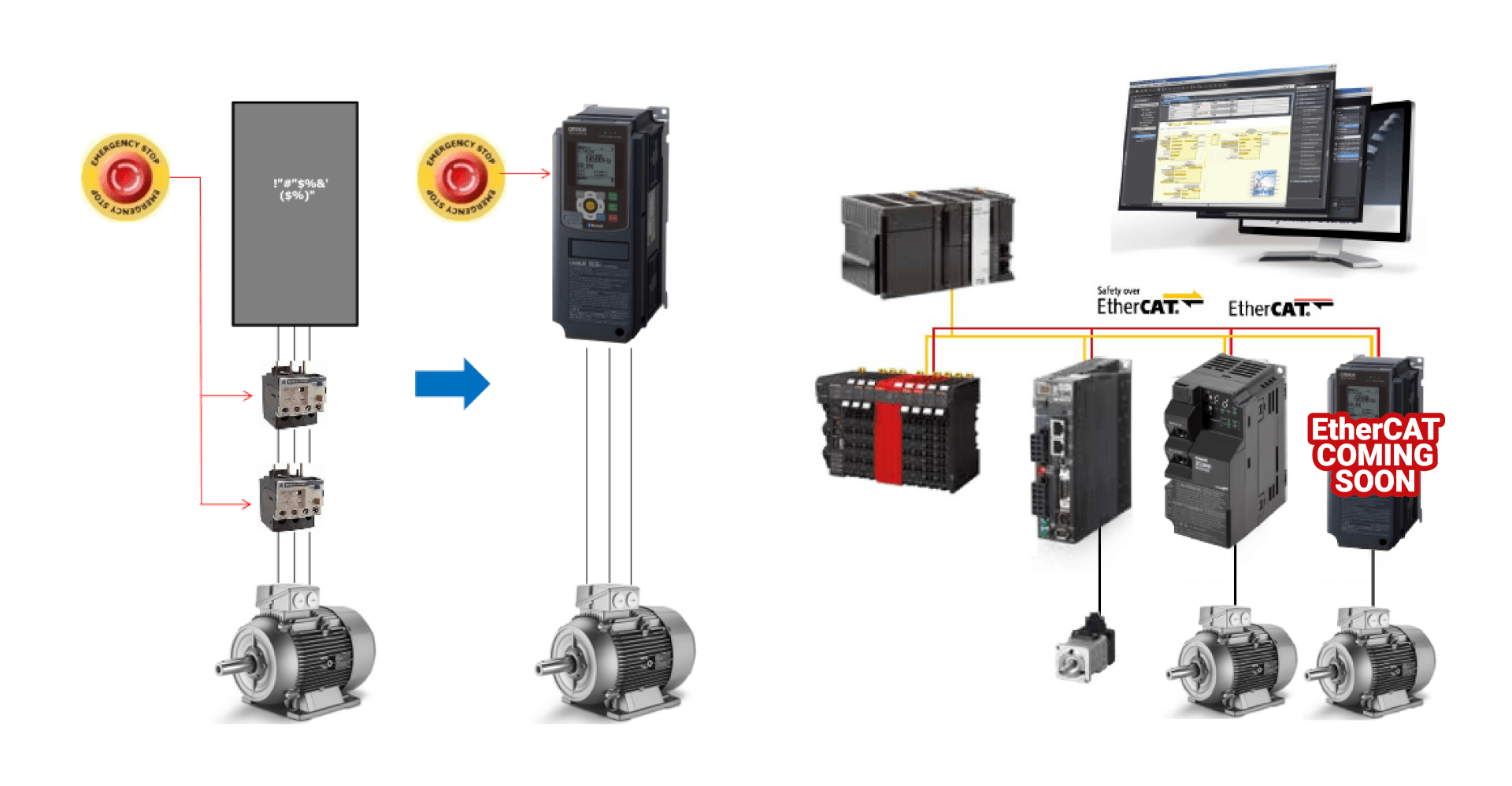

Safe and reliable manufacturing
Safe working environment

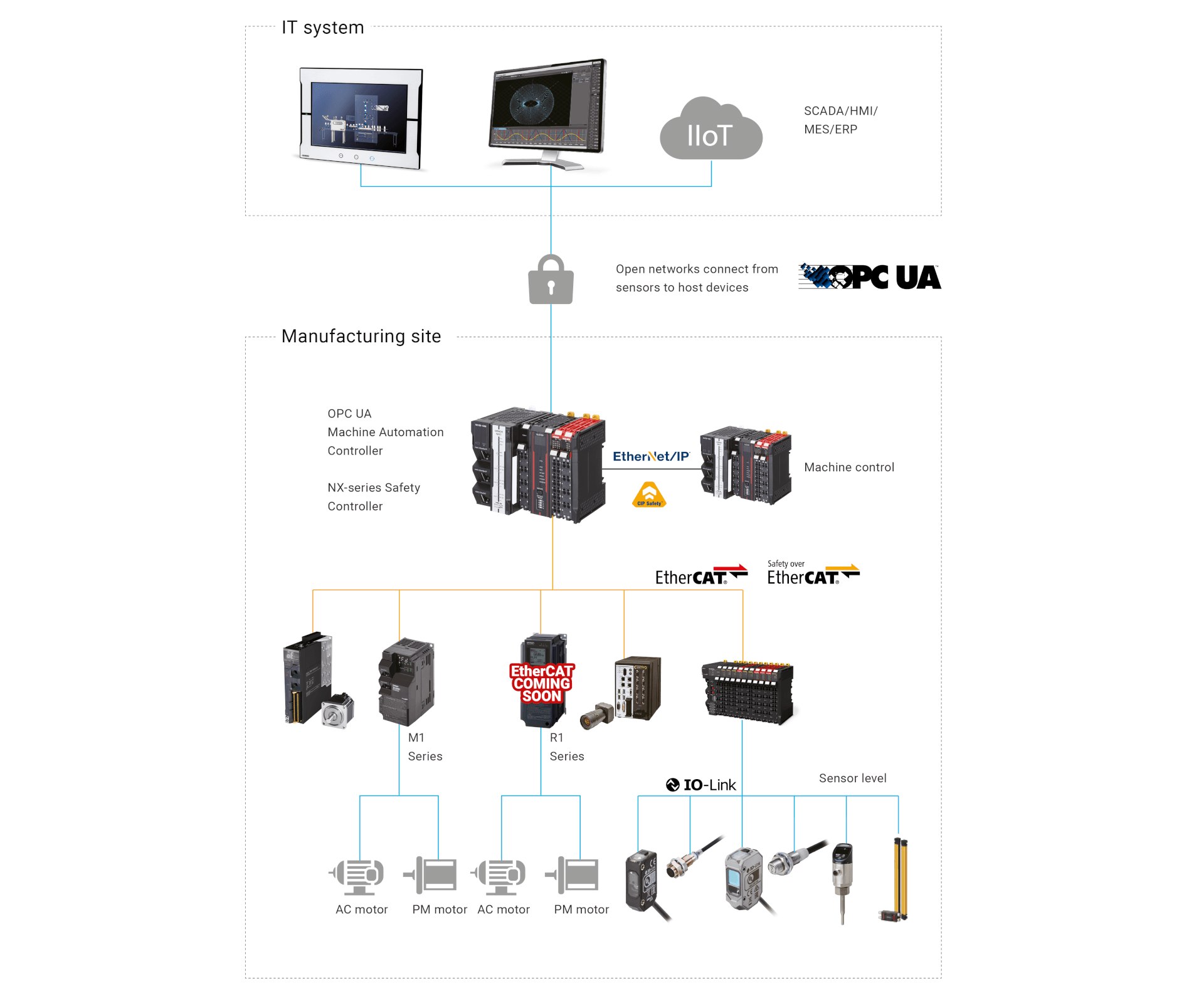

Safety always comes first. Omron's scalable safety solutions allow you to design machine safety according to customer needs. The M1 and R1 Series expands the flexibility of your safety functions.
Reliable production
Modern production lines should be safe and reliable at the same time. Omron's integrated safety solution realizes a safe working environment for workers and high operational availability of each machine.
Sustainable manufacturing
Energy saving
Almost half of world's electrical power consumption is by motors. Selecting the correct motor and optimizing the motion are the most effective way to save energy. The R1 Series has adaptability for various kinds of motors and ability to drive them.
