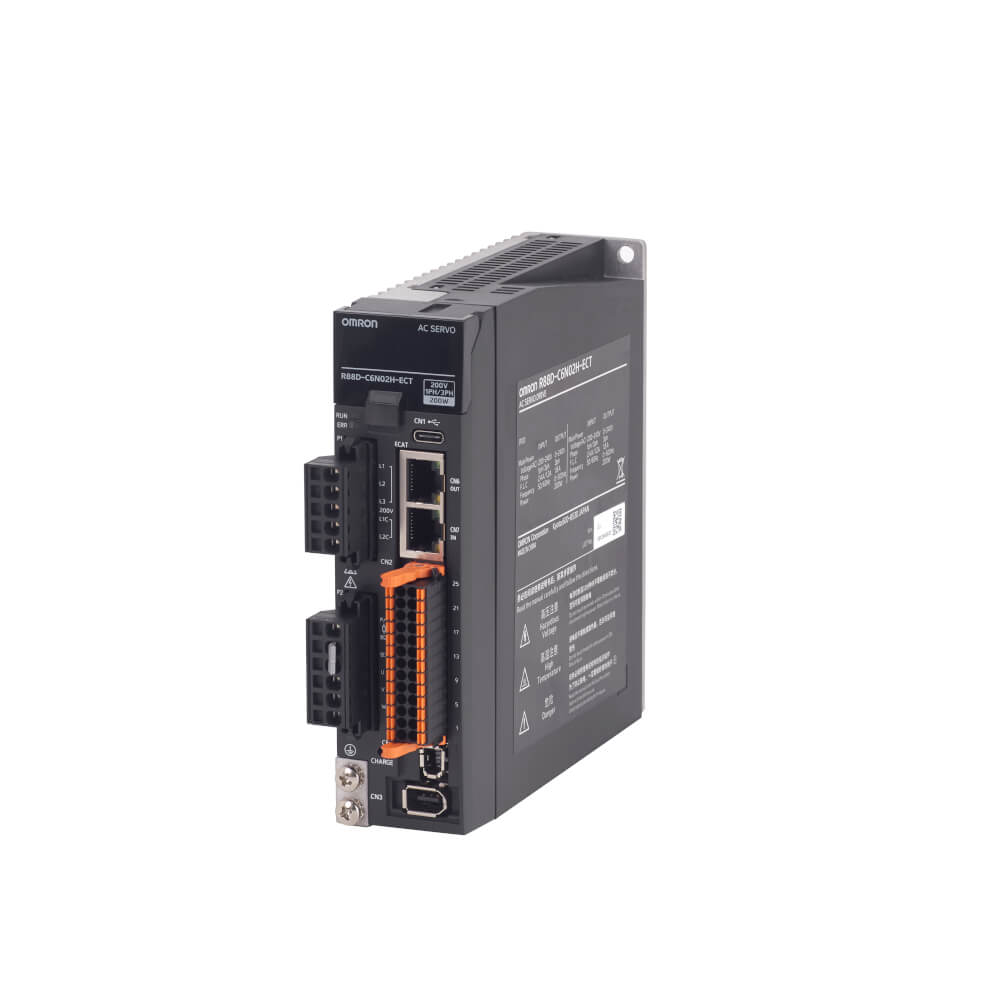

R88D-C6N02H-ECT-GS
C6 AC servo drive, Standard model, EtherCAT Communications, 200 W, 1/3-phase, 230 VAC
Specifications
| Servo control method | EtherCAT |
| Drive supply voltage | 230 V single phase, 230 V three phase |
| Rated output | 0.2 kW |
| Safety functions | STO |
| Product Height (unpacked) | 155.4 mm |
| Product Width (unpacked) | 41 mm |
| Product Depth (unpacked) | 142 mm |
| Product Weight (unpacked) | 820 g |
Fits to
-

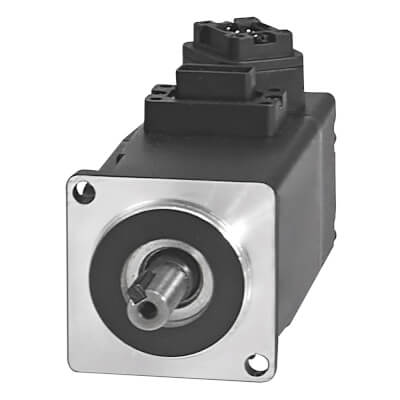

C6 AC servo motor, High inertia, 50 W, 230 VAC, 3000 rpm, 0.16 Nm, absolute encoder, with brake and key
-
C6 AC servo motor, High inertia, 50 W, 230 VAC, 3000 rpm, 0.16 Nm, absolute encoder, wiht key
-
C6 AC servo motor, High inertia, 100 W, 230 VAC, 3000 rpm, 0.32 Nm, absolute encoder, with brake and key
-
C6 AC servo motor, High inertia, 100 W, 230 VAC, 3000 rpm, 0.32 Nm, absolute encoder, wiht key
-
C6 AC servo motor, High inertia, 200 W, 230 VAC, 3000 rpm, 0.64 Nm, absolute encoder, with brake and key
-
C6 AC servo motor, High inertia, 200 W, 230 VAC, 3000 rpm, 0.64 Nm, absolute encoder, wiht key
Tilbehør
| R88A-FIC6103-SE | C6 Servo RFI filter; 230 VAC single-phase, for 200 W drives |
|
