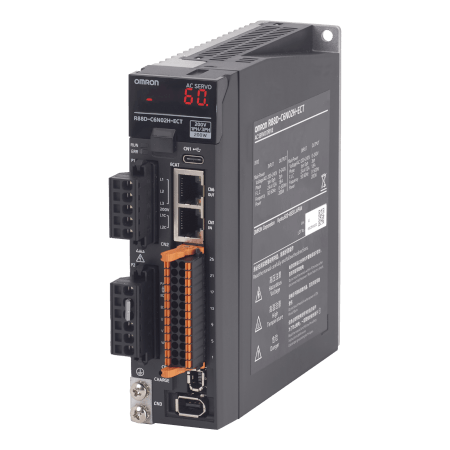

C6 Drives
Enhance light-duty applications with economical servo
Ratings: 230 VAC from 50 W to 1.5 kW, 400 VAC from 850 W to 7.5 kW
- EtherCAT Communications Cycle of 125 μs
- Intuitive axis setup
- Small footprint drives to reduce cabinet size
- High bandwidth of 3.5 kHz
- Pluggable connectors for easy pre-wiring and system maintenance
- Direct wiring of I/O signals
- Equipped with a 26-bit encoder resolution
- Full closed-loop control for high-precision positioning
- Safety Function: Hardwired Safe Torque Off (STO), PLe, Cat. 4 and SIL 3, compliant with EN ISO 13849-1, EN IEC 61508, EN IEC 62061, EN IEC 61800-5-2 and UL 61800-5-2
Need assistance?
We’re here to help! Reach out, and our specialists will assist you in finding the best solution for your business.
Kontakt mig C6 Drives
Tak for indsendelsen af din forespørgsel. Vi vil vende tilbage med svar så hurtigt som muligt.
Vi har desværre tekniske problemer. Din formular er ikke modtaget. Vi undskylder og beder dig om at prøve igen senere. Detaljer: [details]
Tilbud på C6 Drives
Med denne formular kan du bestille et tilbud på et eller flere af vores produkter. Venligst udfyld alle de felter der er markeret med *. Dine personlige oplysninger vil blive håndteret fortroligt.
Tak for din forespørgsel. Vi vender tilbage med de ønskede oplysninger så hurtigt som muligt.
Vi har desværre tekniske problemer. Din formular er ikke modtaget. Vi undskylder og beder dig om at prøve igen senere. Detaljer: [details]
Specifications & ordering info
| Produkt | Servo control method | Drive supply voltage | Rated output | Safety functions | Description | |
|---|---|---|---|---|---|---|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 0.2 kW | STO | C6 AC servo drive, Standard model, EtherCAT Communications, 200 W, 1/3-phase, 230 VAC |
|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 0.4 kW | STO | C6 AC servo drive, Standard model, EtherCAT Communications, 400 W, 1/3-phase, 230 VAC |
|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 0.75 kW | STO | C6 AC servo drive, Standard model, EtherCAT Communications, 750 W, 1/3-phase, 230 VAC |
|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 1 kW | STO | C6 AC servo drive, Standard model, EtherCAT Communications, 1 kW, 1/3-phase, 230 VAC |
|
|
|
EtherCAT | 400 V three phase | 1.5 kW | STO | C6 AC servo drive, Standard model, EtherCAT Communications, 1.5 kW, 3-phase, 400 VAC |
|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 1.5 kW | STO | C6 AC servo drive, Standard model, EtherCAT Communications, 1.5 kW, 1/3-phase, 230 VAC |
|
|
|
EtherCAT | 400 V three phase | 3 kW | STO | C6 AC servo drive, Standard model, EtherCAT Communications, 3 kW, 3-phase, 400 VAC |
|
|
|
EtherCAT | 400 V three phase | 5 kW | STO | C6 AC servo drive, Standard model, EtherCAT Communications, 5 kW, 3-phase, 400 VAC |
|
|
|
EtherCAT | 400 V three phase | 6 kW | STO | C6 AC servo drive, Standard model, EtherCAT Communications, 6 kW, 3-phase, 400 VAC |
|
|
|
EtherCAT | 400 V three phase | 7.5 kW | STO | C6 AC servo drive, Standard model, EtherCAT Communications, 7.5 kW, 3-phase, 400 VAC |
|
